CFRTP Production Equipment
Zloonex designs and manufactures its own production equipment. Every line below is developed and built in-house, so equipment capability and material know-how stay matched.
Production Lines
Three production-grade lines covering the full CFRTP value chain - from UD tape to finished panels.

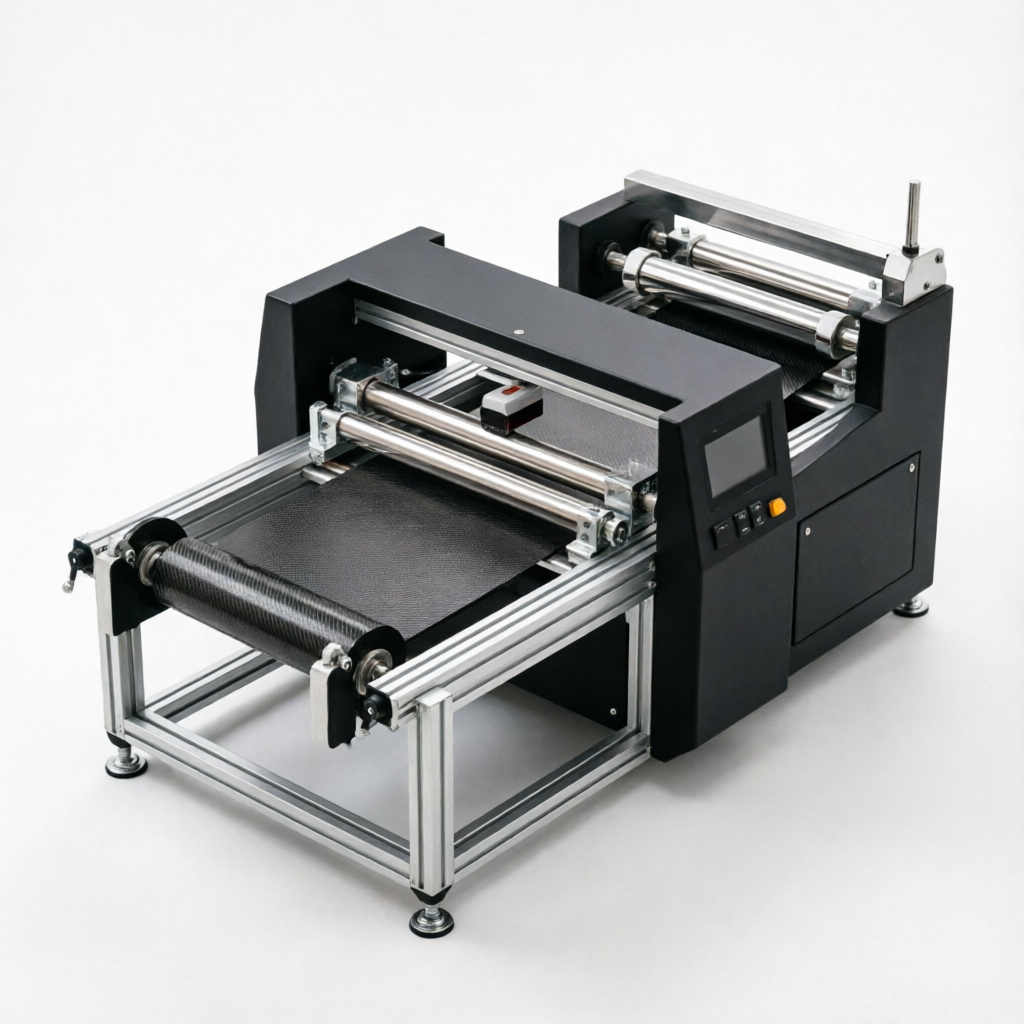

Thermoplastic Prepreg Test Line
Self-developed industrial machinery for fabricating high-performance continuous-fiber reinforced thermoplastic prepreg UD tape — covering carbon fiber, glass fiber, aramid, basalt, and metallized fiber. The line is built for scientific research needs and industrial mass-production feasibility verification with stability, high efficiency, and low cost. Max heating 450°C, 1-30mm width, compatible with PP/PA/PC/PPS/PEEK/TPI.
Key Features
- 450°C Max
- 1-30mm Width
- PP-PEEK-TPI Compatible
- Turnkey Solution
- R&D to Production
Specifications
| 1 – 30 mm | |
| 0.07 – 0.25 mm | |
| 25 – 40% | |
| 1 – 5 m/min | |
| 450 °C | |
| 30 – 2000 cN | |
| PP, PA, PC, PPS, PEEK, TPI | |
| ~ 35 kW |
Two-Belt Laminate Press Line
Continuous two-belt flat laminate press for CFRTP sandwich and solid panel lamination, with selectable belt width and heated zones.
Key Features
- Anti-static Teflon belt
- 0-50 N/cm2 pressure
- Electric/Oil/Gas heating
- Siemens control
Specifications
| Belt Width | 550 - 3200 mm |
| Compound Thickness | 0.5 - 100 mm |
| Conveyor Belt | Anti-static Teflon belt |
| Max Belt Pressure | 0 - 50 N/cm2 |
| Heating Mode | Electric / Oil / Gas |
| Heating Zone Length | 500 - 6000 mm |
| Designed Speed | 0.5 - 15 m/min |
| Control System | Siemens or OEM |
CFRT UD Prepreg Tape Line
Continuous melt-impregnation line producing unidirectional thermoplastic prepreg tape in a single pass, with selectable spindle count and resin system.
Key Features
- 72-700 spindles
- PEEK/PA/PC/PPS/PEI/PA6/PP resins
- 300-1800mm width
- Carbon/Glass/Aramid fiber
Specifications
| Spindle Number | 72 / 96 / 192 / 384 / 600 / 700 |
| Applicable Resins | PEEK / PA / PC / PPS / PEI / PA6 / PP |
| Product Width | 300 - 1800 mm |
| Applicable Materials | Carbon / Glass / Aramid fiber |
| Product Thickness | 0.15 - 0.5 mm |
| Line Speed | 5 - 20 m/min |
| Heating Zone Length | 600 - 3000 mm |
| Control System | Siemens or OEM |
Need Custom Equipment?
All Zloonex lines are OEM-adjustable. Belt width, spindle count, heating zones, and control systems can be configured to your production requirements.
